    got this mostly done- still need to polish up a few parts. This first pic shows the left and right side views. The vertical adapter is in place.


    On the left you can see the two camera mounting bolts for horizontal use- the bolt on the right is for the camera shown, and the bolt on the left, which is not protruding, is for my other camera. On the right, looking close to the bottom, you see some knobs- the bottom one with the setscrew hole showing is the adjustment for front-to-back level, and the round disc to the right is the side-to-side level adjustment. Other knobs are to tighten these axis so there is no play once adjusted. The top knob here holds the camera on, and the one below that holds the vertical adapter in place.

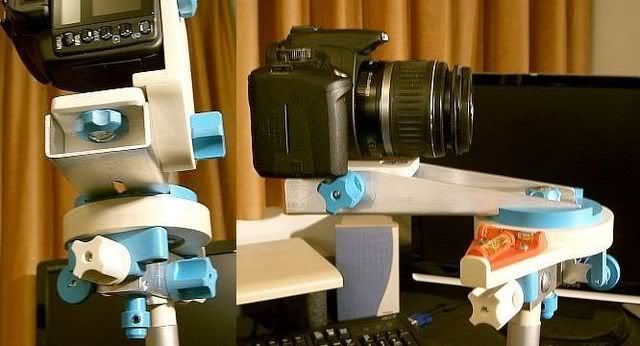

    In the left pic below, you're looking at the front/right side of the mount, but the back of the nodal tray. This shows the bolt to hold the rebel xt when in horizontal use. The blue plastic holding the aluminum tray rotates within the white plastic base which is just above all those knobs. On the right the tray has been adjusted all the way out- this would only be done when the zoom lens is on.


    In these bottom pics- on the left the camera has been mounted horizontally, and the vertical adapter has been lost- I mean put away in the camera bag (hopefully). The base that the camera is bolted to can tilt forward or backward by about 15 degrees. I know this will impact the stitching together of images to some extent, but we'll see what happens. At any rate, I've got some adjustability to compose the images as I see fit. On the right is a close-up of the sliding tray and its securing knob. Very evident also is the knob that holds the second camera. It's hanging low at this point because if it protruded, it would interfere with the lens on the xt. It can be raised into position easily by threading it upwards through the blue washer that you see recessed in the horizontal base. Three of these fixation knobs have this washer, and it acts as a keeper to keep the bolts in place when no camera is mounted. You might notice that this bolt is off center- it has to be because the casio p+s has its mounting hole off to one side of the lens axis.
    If you go back to the right side of the first picture, the empty hole you see is for mounting the casio. There's a spacer required for this to put that cameras lens in line with the center of the rotating table. Those parts can't be attached all the time as they get in the way of the camera thats shown.


    Adjusting the tray to eliminate parallax error is going to be more effort for the small camera since its lens moves as you adjust it. With the camera shown, it seems like I can get away with one adjustment point with the kit lens. I don't know about the zoom, but I'm sure I'll find out. There's room on the side of the tray for markings that would align with an index mark, so eventually I'll find the correct settings for all modes and mark them there. Notice I didn't etch any degree markings on the base just yet- I'm going to play with this for awhile and see if I really need those.
