Producing an Internal Bore Around Corners Without Tooling

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Producing an Internal Bore Around Corners Without Tooling

    To All
    After seeing my Monitor Steam Engine, many guys want to know how I made the pipe from solid (more or less), so I have decided to show the process here. JCHannum will be excited because he now no longer has to wait .

    Lets start off by saying that I tried to cast the pipe 17 times, and each time was a failure, which I will not review here, other than to say it was mostly a porosity problem. Determined to make it from scratch, I came up with what I believe is an original way of making elbows, without using any Special Tooling like rotary table, indexers, or CNC , and no casting !.

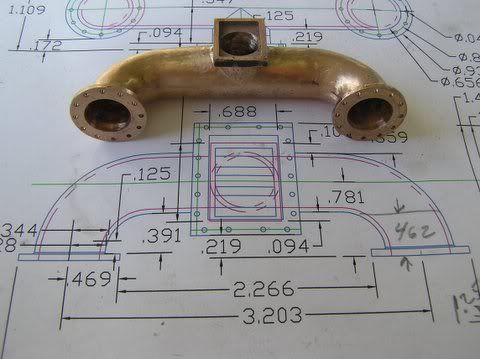

    In this photo you see the #17 Pipe which failed when it was polished.
    It is sitting on the print that shows dimensions and form. Please note,that to cast it, I had to forego the throttle box unit which was an integral part of the original engines' Steam Inlet Pipe. Something I was not happy with,
    to say the least


    So I cast in Bronze, a full size solid block to work with.


    Now the bore I wanted was 9/16 for scale, But I decided to use 1/2 for my passageway. here a 1/2 long ball mill is milling the horizontal passage, and my depth would be to the top of the pipe internally. note that I only mill upto the flange portion of the block

    Then I milled as deep as I could without breaking out of the top(we're upside down !) of the "desired" pipe, AND, I am careful to not get too close to the flange area.
    I have to leave room for a plug (next photo) with full depth. What I am trying to do is get around the corner a little bit. These photos were taken after the pipe was bored, so they are reproduction shots. What you do not see is my extensive use of cad prints---Full SIZE--It helps
    I take the drawing you saw in photo #1 and make several full size ones, and cut them out square to match the castings edges (!) and glue them to the casting sides --accurately ! I take a spare print and position it on the far vice jaw and determine the angle I want from it, and the depth and length of my cut by eyeballing the cutter and setting stops. then I place the real block in the exact same spot and do my undercutting. If you look at the cut, you can see about 1/4" left in the slot that is the bottom of the pipe

    To be continued.

  • #2
    next, I made a Key of the same material ,to be silversoldered, on the bottom of the pipe so it is out of sight. Note the cross drilled hole for the throttle box. The key is made as close to size as possible, for good looks, and has a flange left to act as a stop. The key is a nice little rotary table job if you want, or fitted by hand

    After Soldering, it is checked for voids, by milling

    Next the throttle plate is soldered. Note that a hole exists to vent gases during the SS workand that the hole matches a "grid" slot .

    Now to the "Meat" of the project. Using a ball mill (!) , remove some of the pipe bore at the flange to about 1/2 depth --rough
    NOW----Put in a Ball Burr (1/2" shown) in the spindle and tie some bailing wire to the quill tightly. bend the wire until it is EXACTLY on cerline with the ball portion of the Burr.. Now, equally important is to mark the centerline of the pipe . I used the C/L on the Cad drawing that was glued to my part, but I have marked it out here for the photos

    Comment


    • #3
      [/IMG]
      We are looking straight in on the wire C/L in this shot

      Now plunge in and keep the wire on the C/L by moving the quill down and the X axis only ( Y was clamped from day 1 ). The BALL BURR makes this as easy as can be . There is NO grabbing, or jumping. The burr is smooth as silk and the C/L is very easy to follow NO special location needs to be used !, just expose C/L Marks above vice jaws.

      The neat part, is that the material can be positioned to any angle WITHOUT gauges, trig, or fixtures. If you see the C/L, you can cut it.
      Please note how deep I am into the pipe. the wire is the BALL !

      the finished hole with very fine chips.

      Comment


      • #4
        How does this look? Reminds me of my dentist !
        Note that angles and setups are irrelevent !

        The last operation is lots of filling. Here is a piece of steel that was drilled through, and then Counterbored to the exact flange depth and diameter.
        A small rope was knotted and fed through the pipe , then through the C'B and tied to the bench leg at the floor. The knot pulls the pipe tight into the C/B when stepped on. this allows easy handling of the pipe hands free. To rotate the pipe I lighten up on the foot pressure, turn the pipe and file again. Please note the Grid Valve face milled in the throttle valve

        thanks for your attention
        Rich
