  • Originally posted by chucketn View Post
    I like the simple indexer. Made from plans or your design?

    Chuck
    Thanks Chuck,

    Design by junk box for sure. I've seen several examples online, of people using the bull gear in their lathe to index, thats where the design for the indexing pin and spring came from. As far as everything else, I had some .750 ID bearings, so thats what I used, you could easily use bushings instead. I spaced the bearing centers high enough so that the 72 tooth change gear would clear the milling table. The pin/spring assembly slides in and out in a slot, and locks with a cap head, to accommodate different change gear sizes.
    Watch the clearance on the holes in the pin/spring assembly. The only real "looseness" i have in the mechanism is that I bored the hole where the pin passes through the body, nearest the finger knob, a little loose. This causes the pin to pivot up and down a few thou in the front hole. Not enough to worry about for the stuff I'm doing with it, but would be the only thing I'd do different.
    "Never bring a caliper to a mic fight"

    Comment

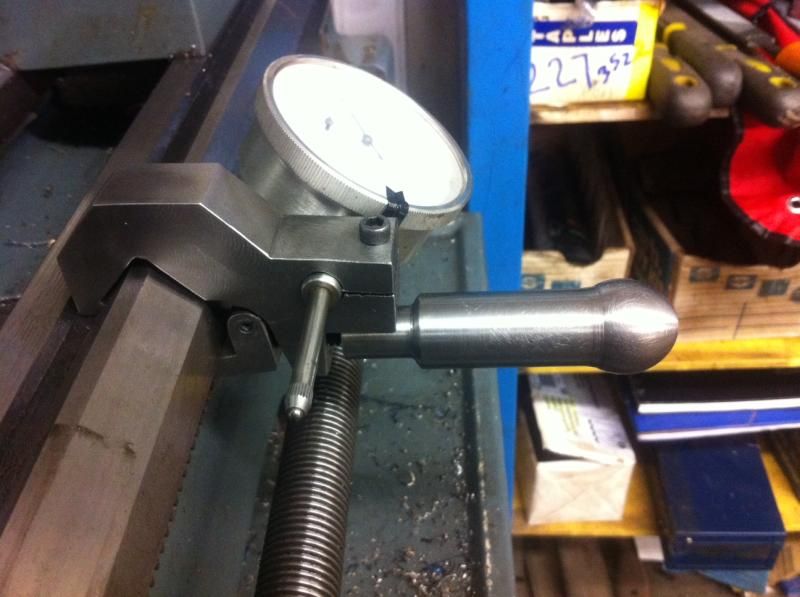

    • Inspired from the pics on page 209 and with the assistance of a forum member who made up the drawings on CAD I gave this a whirl. Had to make few adjustments to make it fit my lathe. The only thing to do is to knurl the handle (hopefully it will remove some of the phallic symbol appearance)



      Comment


      • Why change the handle? As Mark Twain said of always speaking the truth this might "gratify some and astonish the rest."
        .
        "People will occasionally stumble over the truth, but most of the time they will pick themselves up and carry on" : Winston Churchill

        Comment


        • Originally posted by TGTool View Post
          Why change the handle? As Mark Twain said of always speaking the truth this might "gratify some and astonish the rest."
          I may make a new handle.....

          Comment


          • I've got an ancient Denbigh horizontal milling machine, older than the ones on lathes.co.uk. It's got a funny spindle taper, one-of or a now extinct taper. Measured at the correct angle as an MT4 1/2, but a diameter that falls between MT4 and MT4.5. The angle is wrong to match any other taper spec I could find.

            It came with a vertical attachment with an NMTB 40 spindle that's been extremely handy, but it doesn't have a lot of spindle to table space. Sometimes I want to use my tooling in the horizontal spindle. I was going to try to bore the taper to fit a straight cylinder to MT4 adapter inside as a press and loctite fit, but I changed my mind and decided to take advantage of the threaded spindle end that's used to mount chucks.

            This started out as a 4.5" chunk of 4140 HTSR. My poor little 10" Craftex lathe didn't go slow enough. At a .020" depth of cut, I made it work. The thread was some work too. Then I took the cross slide and compound off the lathe, clamped it down to the mill table, and bored the taper right on the mill. Then with a few grades of emery paper, I smoothed out the machining marks.

            I grabbed my most trustworthy endmill holder, blued it up like I'd done in the past when scraping in a T-slot plate, and using scraping techniques but with the emery cloth on a stick, scraped in the taper to be a fit that surprised me. Best taper lock I've got in any of my machines, next to maybe the vertical attachment. Nearly perfect.

            I'm quite pleased. Lots of work, but it was worth it. Now I can use modern tooling in the horizontal spindle. just waiting on a good cobalt tap (because I'm scared of tapping that metal with my old dull carbon taps).



            Comment

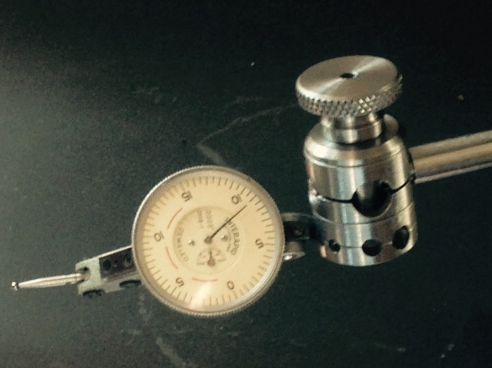

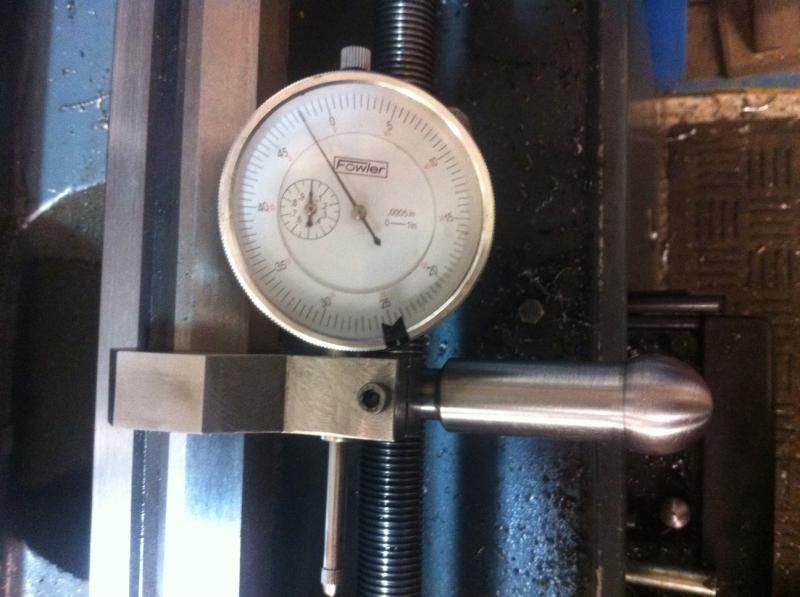

            • Just made an indicator snug inspired by a Starrett item. I can't say this is a good copy because I've only seen photos of the Starrett part and never held one in my hand. Some things about this design could be changed but it works. It mounts on a 5/16" or 3/8" post and takes several different sized indicator stems.

              .
              "People will occasionally stumble over the truth, but most of the time they will pick themselves up and carry on" : Winston Churchill

              Comment


              • I will be copying that.

                Comment


                • Originally posted by TGTool View Post
                  Just made an indicator snug inspired by a Starrett item. I can't say this is a good copy because I've only seen photos of the Starrett part and never held one in my hand. Some things about this design could be changed but it works. It mounts on a 5/16" or 3/8" post and takes several different sized indicator stems.

                  I believe Guy Lautard (remember him?) has instructions and drawings in one of his "Bedside Readers" for a Starrett type snug.

                  Comment


                  • Someone asked me to post this machinery moving kit to this thread. I call it my 'modular tube dolly'.



                    Here's the whole story:

                    http://www.nwnative.us/Grant/shop%20...ctWebPage.html

                    This is a great thread marred only by the vanishing photographs. Thanks to all who have posted.

                    metalmagpie

                    Comment


                    • Nice job!
                      Lathes.co.uk have updated the Denbigh page, there is now some info on these machines.
                      Dave

                      Comment


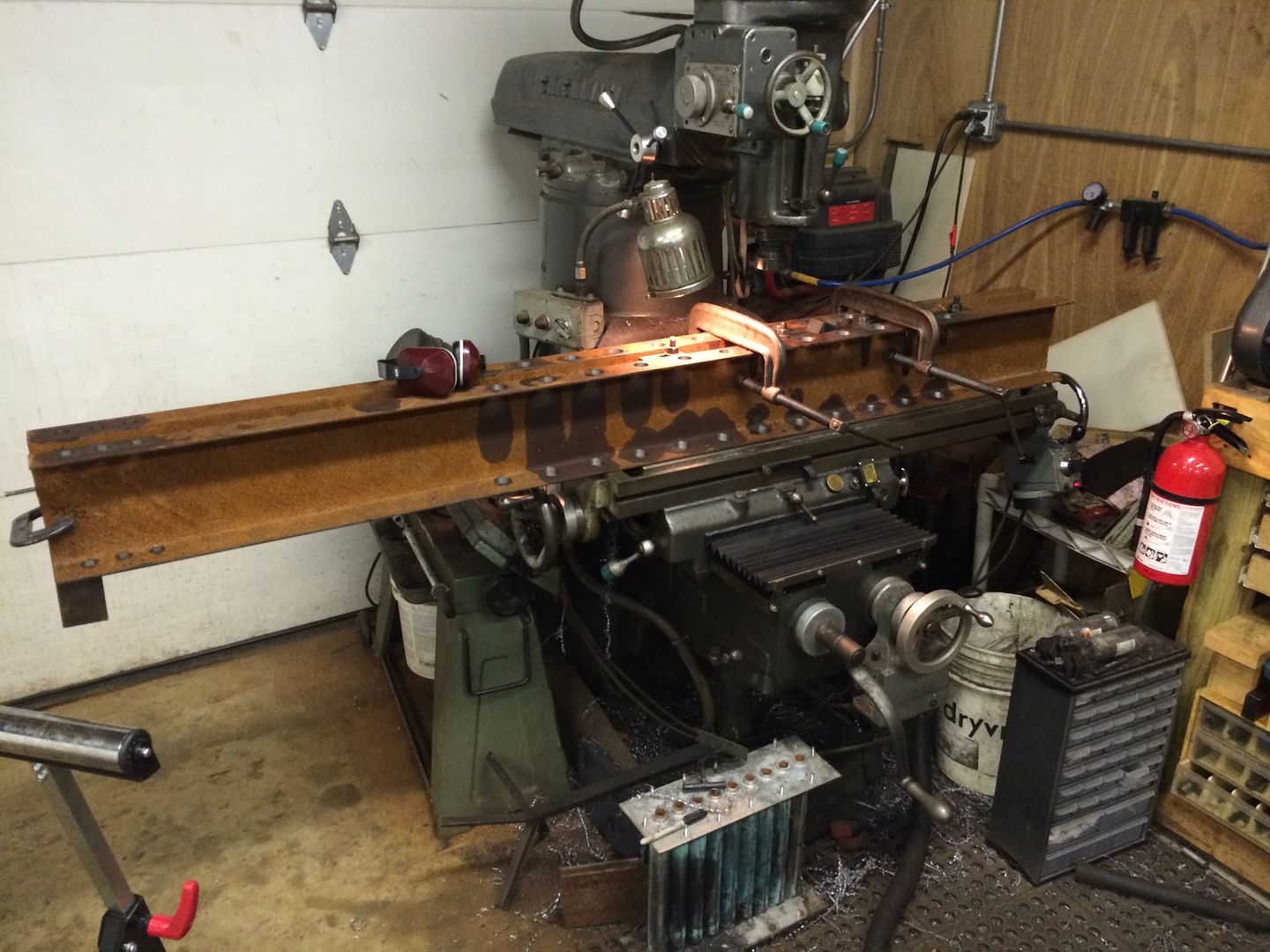

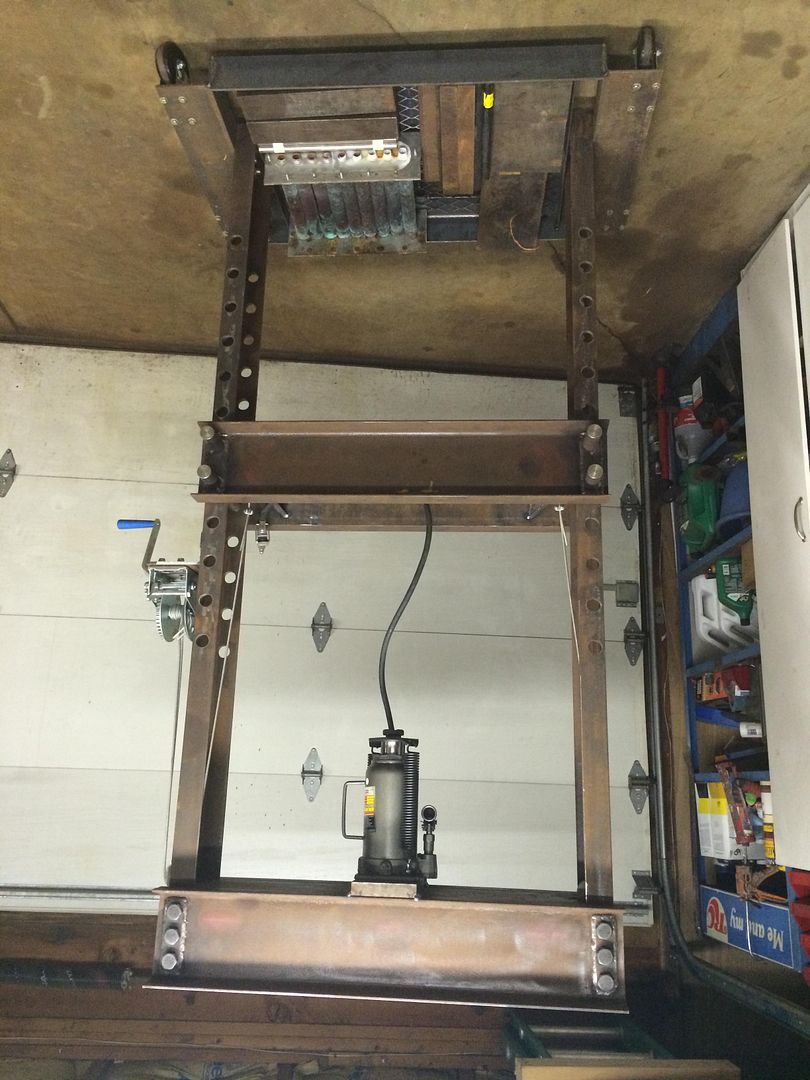

                      • I made a shop press from some free scrap steel my brother gave me. It's over built for the 20 ton HF air over hydraulic cylinder but someday I'll get something bigger. I usually over build most things because I never know what I might need to do in the future. I doesn't flex like my old 12 ton HF press.



                        I built a mini dozer for my kids. More of the build can be seen at www.minidozerbuild.com

                        Comment

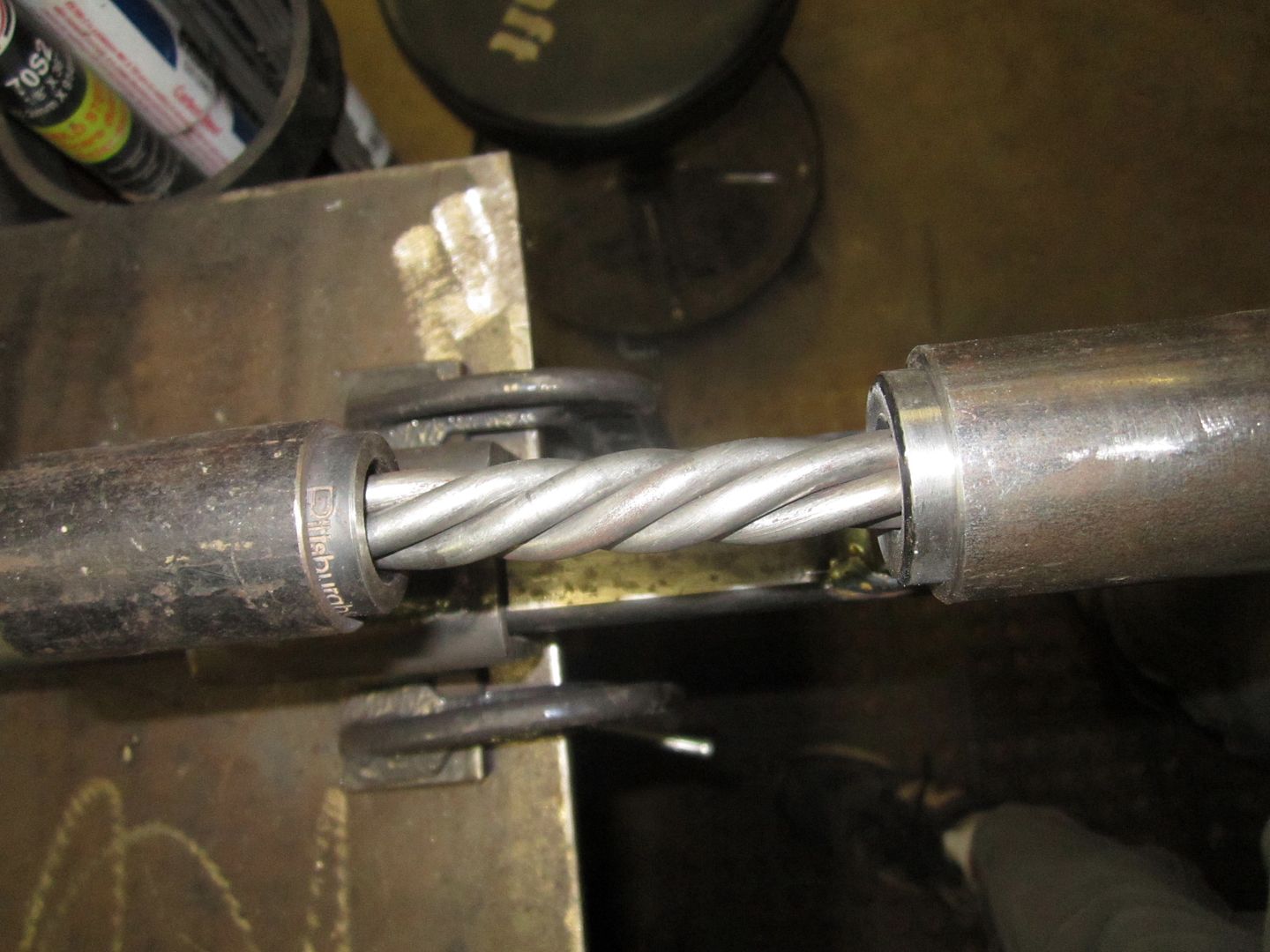

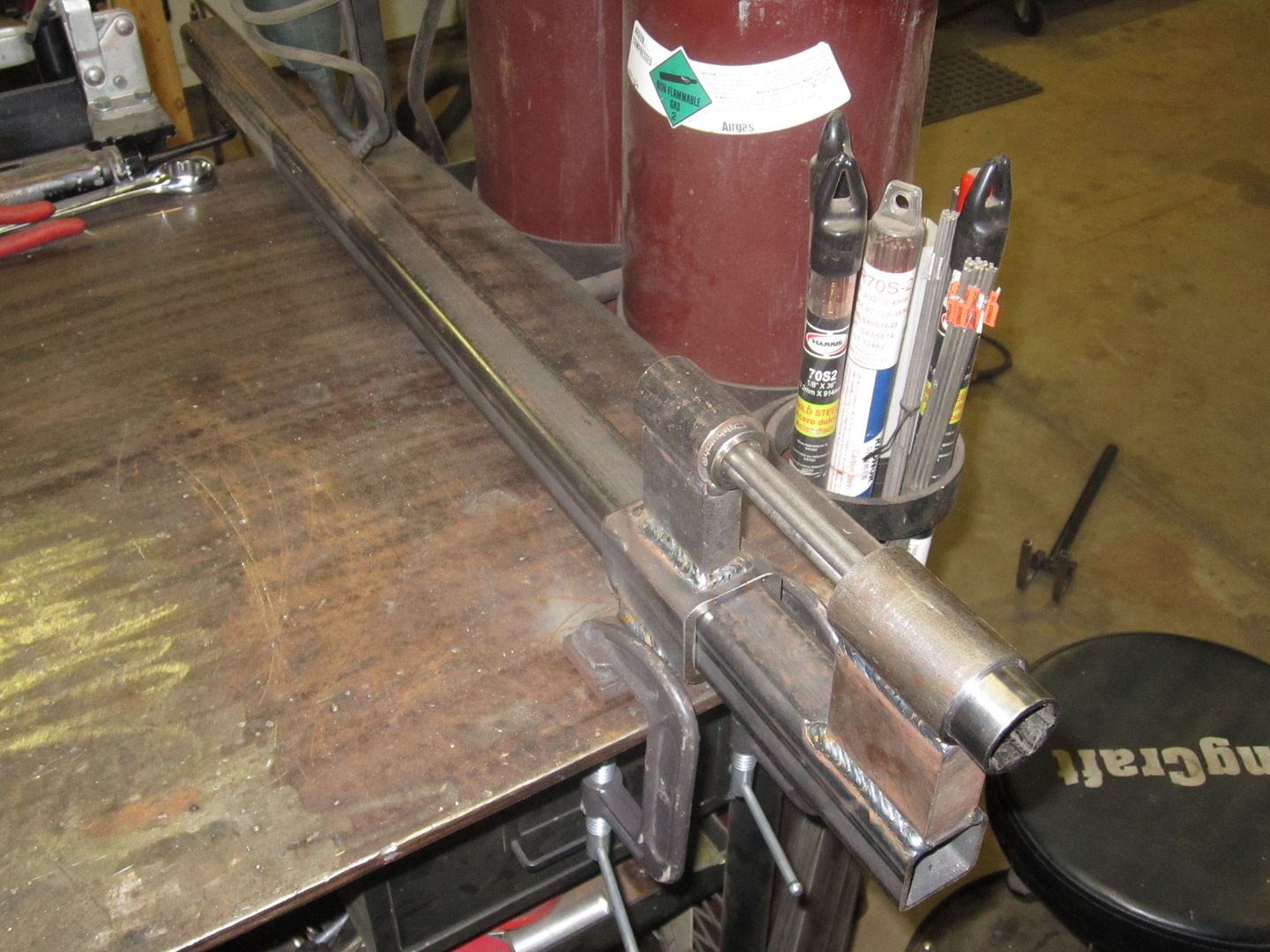

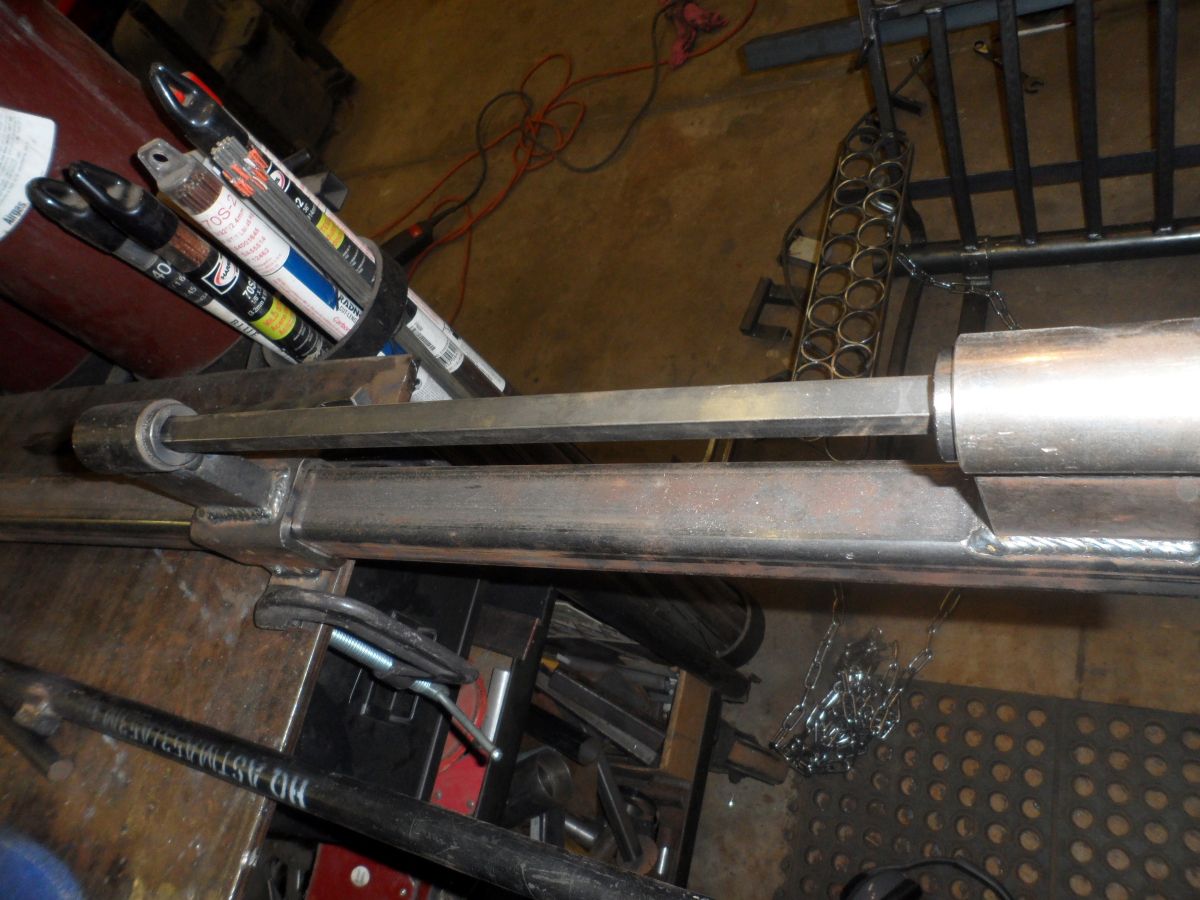

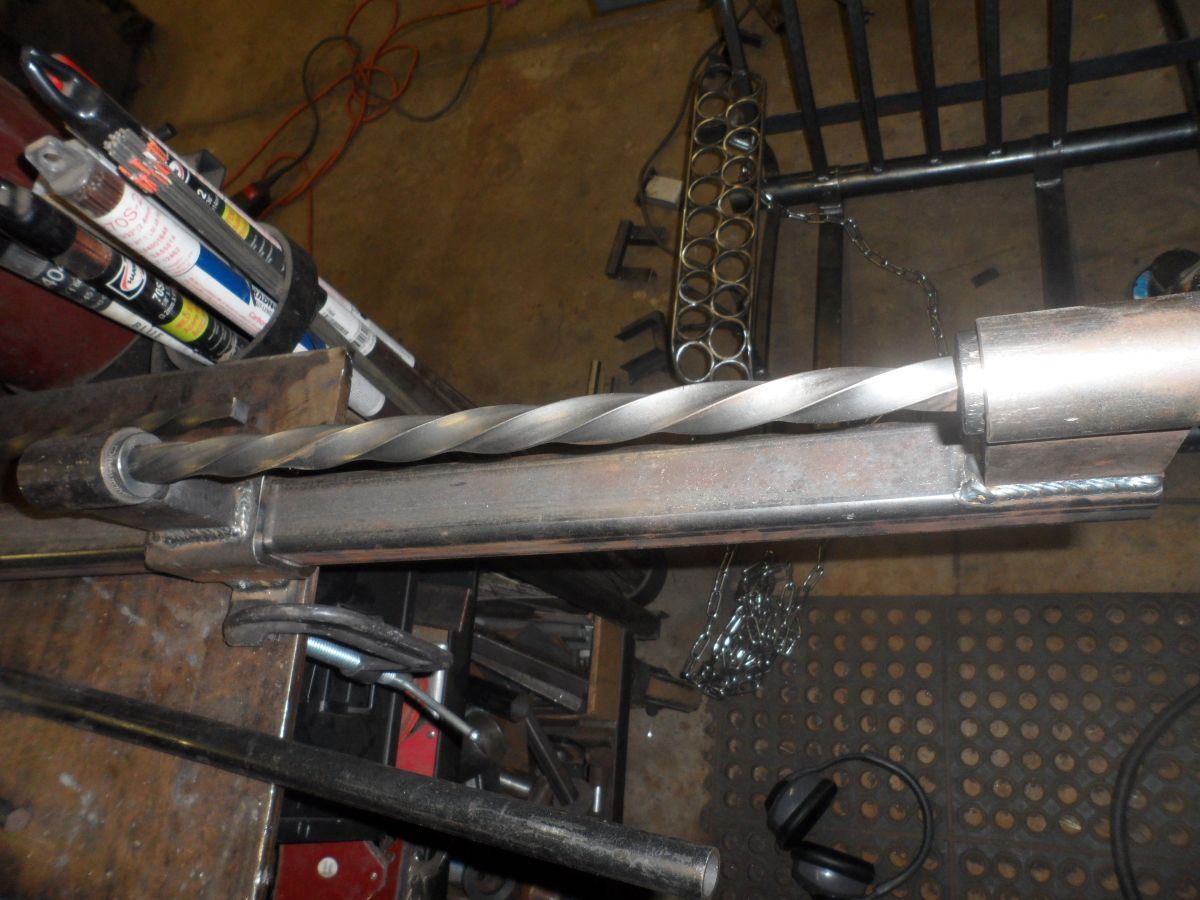

                        • I made a porch swing at one time so I made a metal twister to make some accent pieces. I used some crappy HF sockets that cracked. It can twist 1/2" square stock or 4 1/4" pieces of round rod.



                          I built a mini dozer for my kids. More of the build can be seen at www.minidozerbuild.com

                          Comment


                          • I have made a twister as well. Here are some pics.

                            http://s964.photobucket.com/user/mtw...?sort=3&page=1

                            Mtw fdu.

                            Comment


                            • Originally posted by Dozerbuilder01 View Post
                              I made a shop press from some free scrap steel my brother gave me. It's over built for the 20 ton HF air over hydraulic cylinder but someday I'll get something bigger. I usually over build most things because I never know what I might need to do in the future. I doesn't flex like my old 12 ton HF press.



                              Is that an HF air over hydraulic and it works fine upside down??
                              Ed
                              Agua Dulce, So.California
                              1950 F1 street rod
                              1949 F1 stock V8 flathead
                              1948 F6 350 chevy/rest stock, no dump bed
                              1953 chevy 3100 AD for 85 S10 frame have a 4BT cummins motor, NV4500
                              1968 Baha Bug with 2.2 ecotec motor, king coil-overs,P/S

                              Comment


                              • Originally posted by Ed ke6bnl View Post
                                Is that an HF air over hydraulic and it works fine upside down??
                                Yes and yes. I installed pick up tubes in the ports that feed the pumps. Works like a champ.
                                I built a mini dozer for my kids. More of the build can be seen at www.minidozerbuild.com

                                Comment
