  • Picture of the freshly profiled main-body:




    Here are the models for the major components in IGES format:
    https://www.dropbox.com/s/leontyr8um...20v26.igs?dl=0
    https://www.dropbox.com/s/gkxsfthhpm...%20v2.igs?dl=0
    https://www.dropbox.com/s/r7753k0qr5...20v12.igs?dl=0
    https://www.dropbox.com/s/2pd0z2056d...%20v3.igs?dl=0
    Last edited by photomankc; 10-26-2015, 12:04 PM.

    Comment


    • Originally posted by ncjeeper View Post
      Nothing special......I just whipped up a new rest for my bench grinder. The factory one was crap.
      Before.

      After.
      Much,much better!
      I just need one more tool,just one!

      Comment


      • Just a hammer... need a break form a bigger project.
        I really wanted to make it to try some knurling. Head is 1018, shrink fit to the 1215 handle, faces are UHMW, all from the bin. I wanted a fine, shallow knurl, not too hard on the hands, I think I got it!





        "Never bring a caliper to a mic fight"

        Comment


        • Hey, that's a nice looking mallet R. Bolte Jr.! Make one for me !!!!

          You can just drop it on over ....*LOL* ... I'm in South County near Suson Park.

          Comment


          • Made a small faceplate and a fitting keyed v-block for excentric turning:



            Personal website

            Comment


            • Thats beautiful!
              Feel free to put me on ignore....

              Comment


              • Originally posted by stefang View Post
                Made a small faceplate and a fitting keyed v-block for eccentric turning:
                That is fantastic work!
                Looking at it I was thinking that you could add a boring head style micrometer adjustment screw that runs through the key to dial in the eccentricity.
                I say you could, because I don't think I could.

                Comment


                • very nice work!

                  Comment


                  • nice work,whats it used for?
                    san jose, ca. usa

                    Comment


                    • Started on page 1 & skipped to page 223......I'm a newbie just seeing what you all discuss: I'll be making time for every page!!!!!!!!!!!!!!!!!! Fabrication at it's best right here.

                      [IMG][/IMG]

                      Might be having to rethink Photobucket as my pic host. Any recommendations?

                      Comment


                      • [IMG][/IMG]

                        Ah, my 2nd image works on the 2nd try.

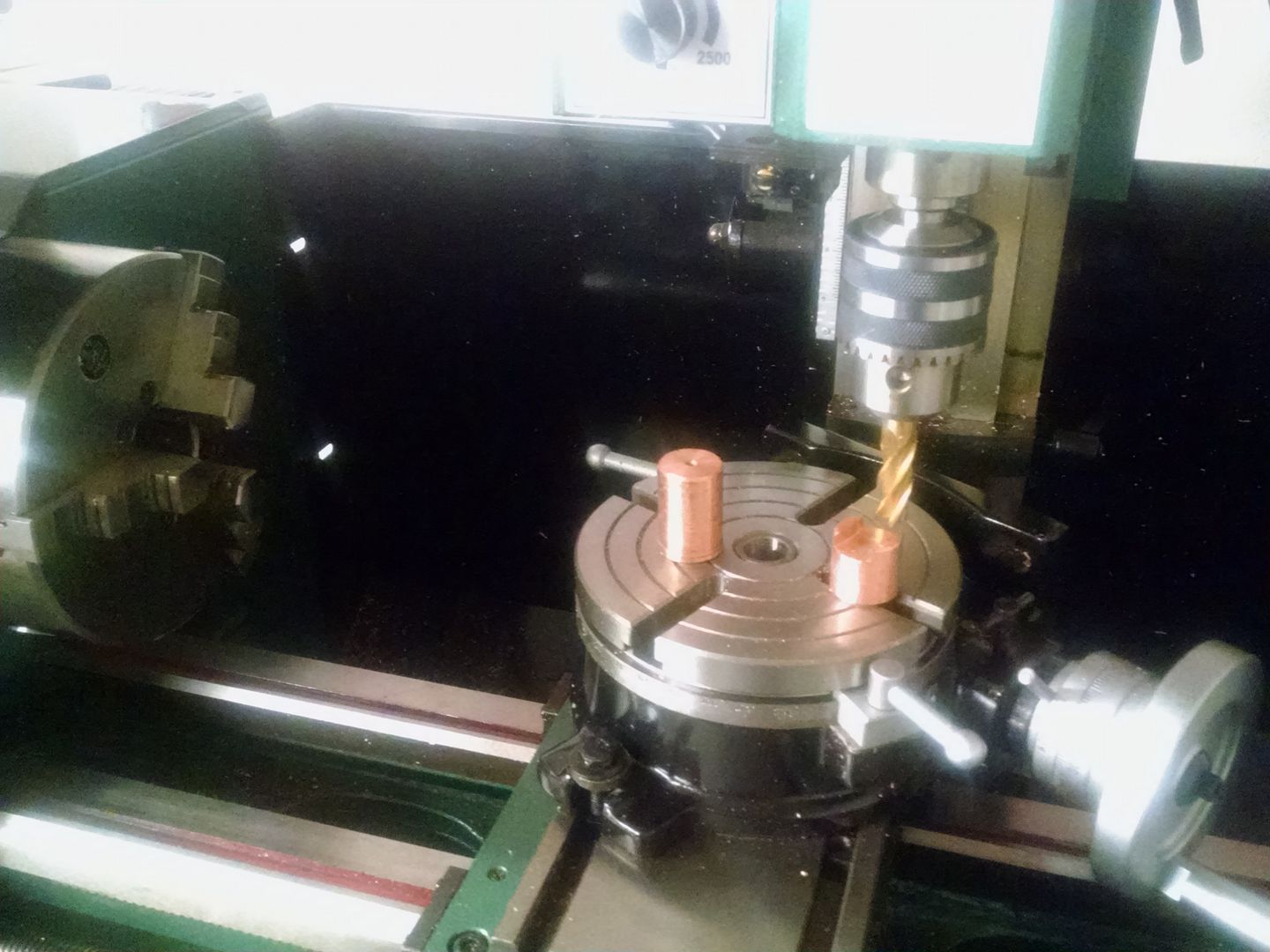

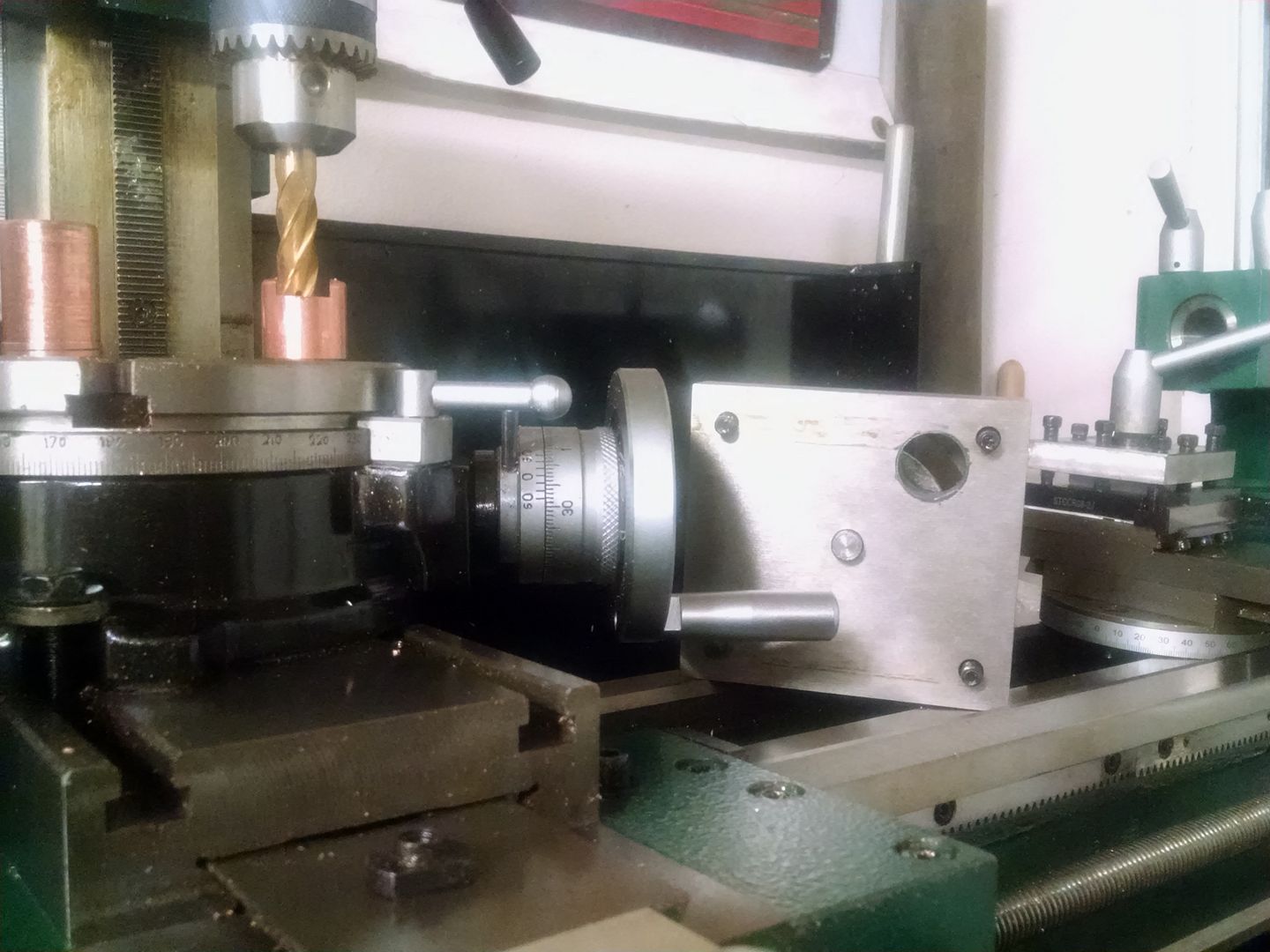

                        What we have here is my 1st machined part ready to make the 4 post turret my new Lathe / Mille Combo came with to actually not hang up on the T-Slot access hole while simply trying to rotate it on it's base. Works great!!

                        Comment


                        • Might be having to rethink Photobucket as my pic host. Any recommendations?
                          I use tinypic.com when I want to post pictures here. No signup required, just a capcha for every 2 pictures posted. When your
                          picture is uploaded, just copy the link under "IMG Code for Forums & Message Boards" and paste it into your post.
                          Location: Long Island, N.Y.

                          Comment


                          • Welcome Brock! A word to the wise-you will do much better with end mills if you hold them in a collet rather than a drill chuck.
                            Kansas City area

                            Comment


                            • Photobucket works fine if you use Firefox and the "Adblock Plus" add-in to get rid of all the ads.

                              Comment


                              • Originally posted by Toolguy View Post
                                Welcome Brock! A word to the wise-you will do much better with end mills if you hold them in a collet rather than a drill chuck.
                                Yes Toolguy. That was pointed out to me on Facebook. So, I referred to my manual & ordered what was spec'd as R8 for a collet set. The results of how that went can be seen on my Newbie Introduction thread. The proverbial Silver lining is in what I've learned from it & finding this site!

                                Safety first!!!!

                                Comment
