  • #16
    It's a hole transfer punch.
    Paul Compton
    www.morini-mania.co.uk
    http://www.youtube.com/user/EVguru

    Comment


    • #17
      don't know about Evan but i use bluing salts. not for the faint of heart or use indoors but create a very nice durable finish. i use lye and a fertilizer from ace hardware, can't remember the exact name. don't breath it or spill it on anything you want to keep. if you want the recipe and instructions they are available on line or i could send you what i have found to work. i have worked with harsh chemicals most of my life and have the scars to prove it. if you're not comfortable with them don't try this.

      thanks for your pictures and input.

      Comment


      • #18
        I use ordinary cold blue but heat the work first with an electric heat gun. That makes the reaction much faster and permanent. It also releases fumes you don't want to breathe or have near your un blued tools.
        Free software for calculating bolt circles and similar: Click Here

        Comment


        • #19
          Paul, you are right.

          It is not a tool I used very often, but when I was transferring holes that were over 1/2 inch and therefore beyond the range of my regular transfer punches they were handy. Another pic below of the unit being depressed.

          Roy,

          I would like it if you could pm me with a little more information on your method for blueing.

          Evan,

          I think you are onto something with the pre-heating. In our plant we had a blue bath line that was capable of blueing a ton of parts or so at one time.

          The first tank was a cleaning/heating tank. Then a caustic solution. Then a rinse. Then and oil bath.

          Brian

          OPEN EYES, OPEN EARS, OPEN MIND

          THINK HARDER

          BETTER TO HAVE TOOLS YOU DON'T NEED THAN TO NEED TOOLS YOU DON'T HAVE

          MY NAME IS BRIAN AND I AM A TOOLOHOLIC

          Comment


          • #20
            Nothing spectacular or new, but a good day project......

            Some months ago my eye was caught by a tramming/taper/angle measuring device I saw in a popular suppliers catalog. A closer look showed the device to be rather simple, but the price seemed nowhere near what I felt was warranted. I then considered making my own and what critical issues had to be considered during construction. The key to the device appeared to be the installation of two, one inch travel DTIs such that they accurately reflect travel of the device. A simple final pass of the completed frame on the lathe and use of a surface plate to install the indicators, easily accomplished that goal. Subsequent use has shown a fair degree of accuracy. I have less than $30 in the project, including the cost of the indicators.



            Fred

            Comment


            • #21
              This is one of my most used shop made tools.

              It's for use with spiral point quality taps for power tapping with a battery drill.



              On the same subject this is probably my least used tool. But, when you need it nothing else will do.





              And, for those that aren't familiar with spiral taps, here are the two types. Spiral point are for through holes while spiral flute are for blind holes.

              Free software for calculating bolt circles and similar: Click Here

              Comment


              • #22
                Here's a real simple little do-dad I was just using yesterday.

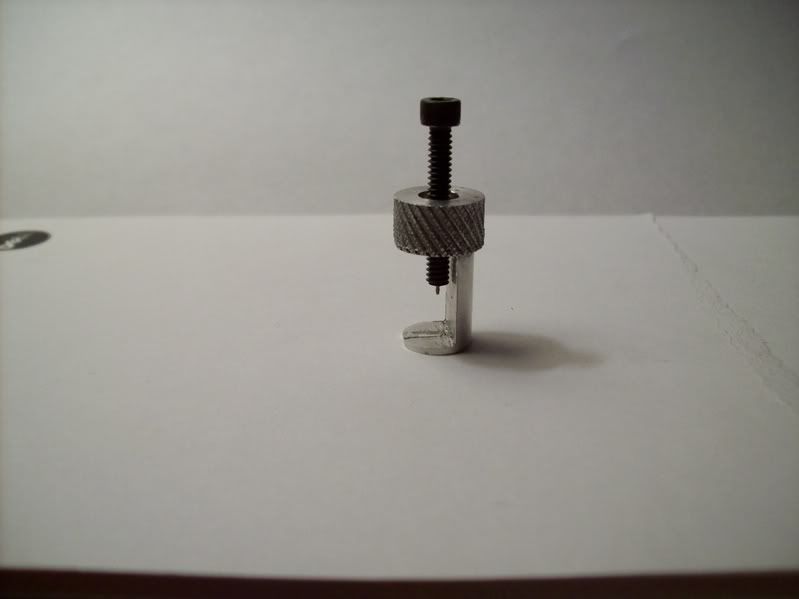

                For a sense of scale, that screw is 6-32. This is used for pulling needles off of dial indicators and dial calipers when they need repair (or just to confound you're associates ). I made this two years ago or so to repair my dial calipers.

                Comment


                • #23
                  Simple Head Tramming Attachment

                  Pherdie,

                  Do you rotate the spindle 180 degrees and look at the indicators from the backside to check for runout in the collet?

                  Below is a simple attachment that I made to tram mill heads.

                  A piece of 3/16 drill rod heated and bent at 90 degree.

                  I always tram the x axis first to get things close and then bring the indicator towards me and bring the head in so it matches the x axis.

                  Then double check the x axis again. Then the Y axis front and back.

                  Might take me 5 minutes to bring both axis into within .001 inch sweeping 10 to 12 inches.

                  Simple but it works for me.

                  Brian

                  OPEN EYES, OPEN EARS, OPEN MIND

                  THINK HARDER

                  BETTER TO HAVE TOOLS YOU DON'T NEED THAN TO NEED TOOLS YOU DON'T HAVE

                  MY NAME IS BRIAN AND I AM A TOOLOHOLIC

                  Comment


                  • #24

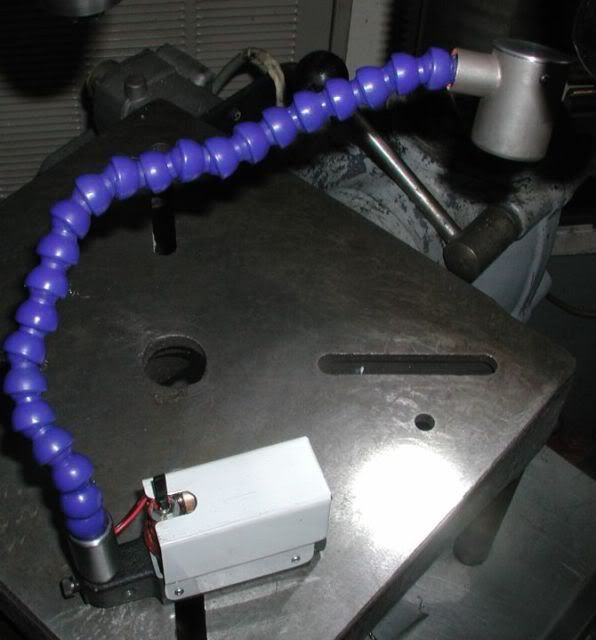

                    Using one of those Cree LED lights that Evan told us about. 4 AA batteries on a Mighty Mag base and some Loc-Line. Super bright light for poor old eyeballs that don't like to focus.

                    Comment


                    • #25
                      Made this a couple of years ago.



                      It's an air tapper, I bought the head and collet set, red box on left, and made the frame.

                      You can buy these as imports but they cost about £800 UKP

                      The tapping head and collets cost me £320 UKP so that makes a pressed steel frame quite expensive.

                      Frame is standard 40mm box [ 1 1/2" ] but I set bushes in the ends and pressed in some sealed ball races [ had a big pile of one size ]



                      I had some old adjustable gas struts of some old inkmixers and I though I'd fit one and adjust it the get neutral balance, an inkmixer is far heavier.

                      Made all the fittings and got the adjusting allen key when I came to fit it only to find no adjustment screw hole and all the markings were in Chinese !

                      I had picked the gas strut up of an X3 that had been converted to CNC but ironically although it was a fixed rating it was perfect for the job.

                      It's a dream powering a M4 tap into a blind hole in alloy, waiting for it to slip then reverse out, so quick and no more broken taps and all the holes are square.

                      I should have built one / bought one years ago.

                      .
                      .

                      Sir John , Earl of Bligeport & Sudspumpwater. MBE [ Motor Bike Engineer ] Nottingham England.



                      Comment


                      • #26
                        To save time a lot of people have centre drills mounted in a blank arbor to save having to keep swapping drills.



                        Next step is to swap to a drill chuck and drill.




                        However not the tailstock ram travel in the first picture, in extreme cases you can even run out of travel using these MT blanks for this application.

                        The answer ?




                        Note the new centre drill holder is made to match the length of a drill chuck or a tad above to allow for a drill.

                        This saves all the winding in and out given holders of different lengths.

                        It only remains then to make a series of holder to haod centre drills and common tapping size drills.



                        Standard blank arbor on right with early centre drill holder above.
                        New arbors on left, the turned pip on the end is the mimic a tang for the extraction rod to work on the end.

                        These save valuable minutes over the length of a job.

                        .
                        .

                        Sir John , Earl of Bligeport & Sudspumpwater. MBE [ Motor Bike Engineer ] Nottingham England.



                        Comment


                        • #27
                          John,

                          Making dedicated arbours for oft-used drills makes a lot of sense. But, unless you have a lever operated tailstock, you still need to wind the tailstock barrel back a long way to eject the arbour and have enough clearance to get the arbour out of the tailstock taper.

                          The drills that you show are all small, and won't put a lot of torque on the morse taper section of the taper.

                          To save winding the barrel back & forth, how about halving the length of the Morse taper section of the arbours (just keep the large end of the taper, saw the smaller half off). It should leave enough length to centre, align and drive the arbour - it'll still be longer than the average ER collet.

                          This'll let you remove the arbour with less retraction of the barrel. Snag is, of course, it then won't self eject.

                          Get around this by machining a ring into the arbour just in front of the front face of the barrel. Make a fork with 2 pins that slips into the ring and lever against the front face of the barrel to pop the arbour out.

                          Ian
                          All of the gear, no idea...

                          Comment


                          • #28
                            Why not thread the outer end of the morse holder and fit ejector ring - make it really quick to eject.

                            peter
                            I have tools I don't know how to use!!

                            Comment


                            • #29
                              Peter,

                              I have a dead centre with such an ejector ring (it's a 5 Morse) - one of these:

                              http://cgi.ebay.de/Spitze-MK5-Drehba...item3efbf67d97

                              Even though it's well greased and the outside is knurled, it takes a surprising effort to jack the centre out using it - I still need to get a C spanner on it.

                              I thought a machined ring might be quicker to make and use, and you'll need some kind of spanner anyway.

                              Ian
                              All of the gear, no idea...

                              Comment


                              • #30
                                Originally posted by Ian B
                                John,

                                Making dedicated arbours for oft-used drills makes a lot of sense. But, unless you have a lever operated tailstock, you still need to wind the tailstock barrel back a long way to eject the arbour and have enough clearance to get the arbour out of the tailstock taper.



                                Ian
                                No you are missing the point, its so you don't HAVE to wind right out. Look at the first pic and the last pic. The extended one will release within 1" the first one, like most people make need to rewind 3" to release.

                                .
                                .

                                Sir John , Earl of Bligeport & Sudspumpwater. MBE [ Motor Bike Engineer ] Nottingham England.



                                Comment
