Blacksmithing Meets Machining: Resurfacing Power Hammer Dies

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Blacksmithing Meets Machining: Resurfacing Power Hammer Dies

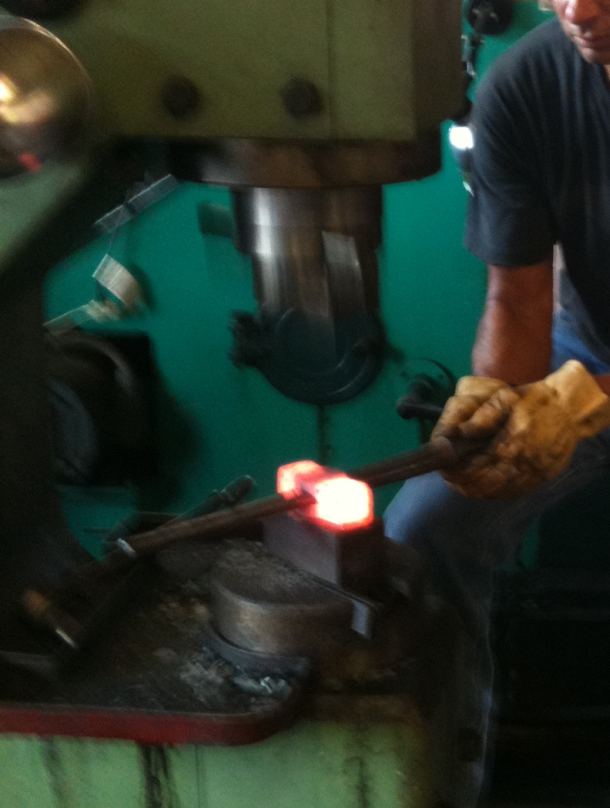

    In the companion thread, Forging a blacksmith's hammer I showed Will Bastas, a well-known blacksmith, using a Sahinler power hammer. These are massive (2600 lb) machines, with a 75 lb ram.

    The dies are large: 4.75" x 2.375" x 3.5", and weigh around 11 lbs each. The dovetailed blocks above and below the hot metal:

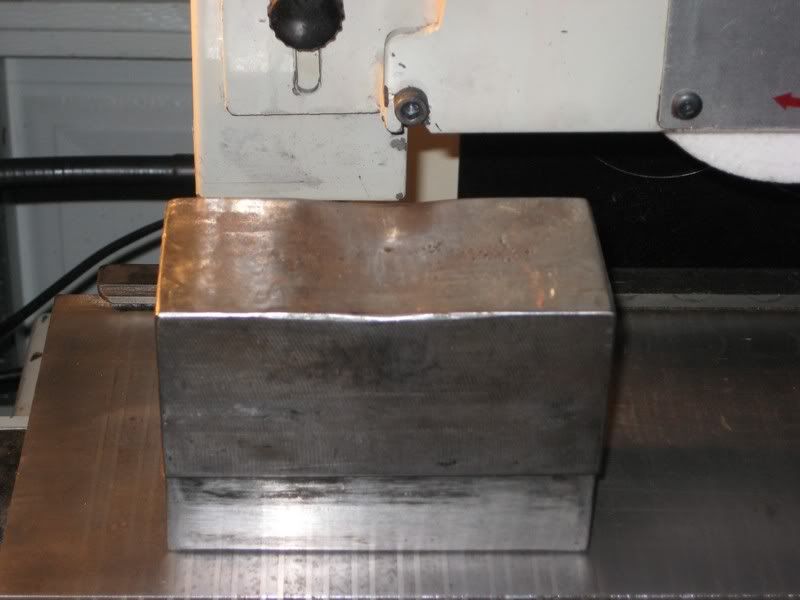

    They're through-hardened S-7, but as you can imagine, they eventually become wallowed from pounding 2500° metal:
