    Hi All

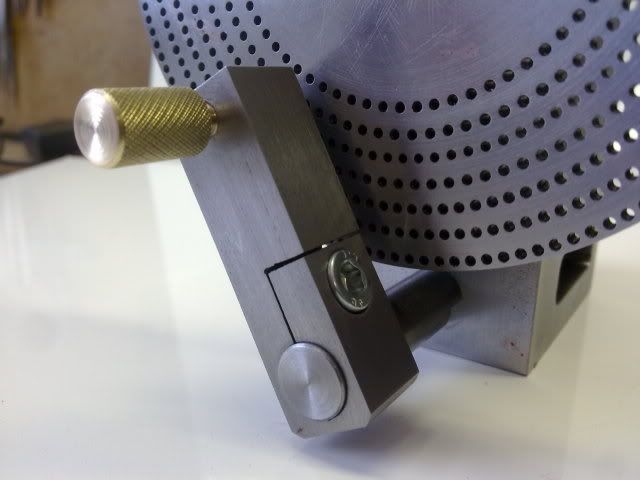

    Been a long time, but finally I have finished a new project.

    It is a dividing apparatus, that is the first step in my project of building a clock





    Any commend is as allways welcome
    Mogens Kilde
    http://m_kilde.skysite.dk/

  • #2
    Looks good, did you drill the holes by hand or CNC?

    Comment


    • #3
      CNC - That's cheating isn't ?

      The plate is drilled by hand in a rather special setup

      Mogens Kilde
      http://m_kilde.skysite.dk/

      Comment


      • #4
        Real good looking plate you have there. Nice job, I really like the way you drilled the holes. Can't wait to see step 2
        If you are using violence and it does not work, You are not using enough or it is upside down.
        You can always just EDM it...

        Comment


        • #5
          I like how you sawed that split-block clamp - did you do that by hand ? Fine looking piece of work.

          Comment


          • #6
            The spilt block was made in the lathe by use of my milling attachment




            The spilt arm was made with a junior hack saw

            Last edited by m_kilde; 03-02-2011, 05:07 PM.
            Mogens Kilde
            http://m_kilde.skysite.dk/

            Comment


            • #7
              I like the compound set up you have used there. Fine looking unit overall.
              I bury my work

              Comment


              • #8
                How did you make the longitudinal cut, parallel to the length of the arm? ...thread a hacksaw blade through the hole to start the cut?
                Last edited by lynnl; 03-02-2011, 10:05 PM.

                Comment


                • #9
                  Originally posted by m_kilde
                  The spilt arm was made with a junior hack saw
                  By hack saw? Is it possible at all?

                  I got it! You read the recently published tip on how to use hacksaws (gold nuggets like "saw blade should be sharp" and "lubrication is helpful").

                  P.S. Very good craftsmanship! Thank you for sharing. Look forward to seeing Part 2 of the series.
                  Last edited by MichaelP; 03-02-2011, 07:04 PM.

                  Comment


                  • #10
                    Very nice work!!!!! What did you use to blacken it???
                    Ernie (VE7ERN)

                    May the wind be always at your back

                    Comment


                    • #11
                      Nice job. Would you describe how you used the gear train to index for drilling the holes?
                      I like the cross slide stop on your lathe too.
                      Jim

                      Comment


                      • #12
                        Originally posted by m_kilde
                        Hi All



                        Any commend is as allways welcome
                        How did you produce that L slit?

                        Comment


                        • #13
                          To make the L-slit I first thread a hacksaw blade in the hole and cut, next a cut from outside into the privious cut.

                          As for the gear train setup, I kindly ask you to study the photo, I'm sure this tells much more than my words will tell.

                          The tool is not blakened, but the stock piece of steel was painted black in its former life.

                          Thank you for all the kind comments
                          Mogens Kilde
                          http://m_kilde.skysite.dk/

                          Comment


                          • #14
                            very nice work looks real good!!!!!!! why seven rows of holes?
                            Last edited by jack3140; 03-03-2011, 11:27 AM. Reason: add on question

                            Comment


                            • #15
                              With the 7 rows I can make the following divisions

                              Mogens Kilde
                              http://m_kilde.skysite.dk/

                              Comment
