    At the peak of "I want to have everything" I got a screaming deal on a B&S clone TB01 dividing head (CL) about 10 years ago. Well... like a lot of acquisitions from that period, I just got around to needing it.

    It was "like new. The prior owner said he got it "years ago" (probably late '80) and only used it once; that's once more than I've used it. lol. I want to cut about 15 gears for my lathes, so now's the time to dust it off.

    Hmmm... feels a really stiff. Worse, it of ratchets a bit at points in the rotation, particularly when changing direction. I figure its got swarf or casting sand caught in the dried out pig fat used for grease. That was a correct assumption, but not the cause and there was far more wrong.

    Here's the DH after I repaired it - doesn't look a lot different to how it was before it started work on it. I didn't intend this to be more than a quick clean/lube, so no pics of the disassembly. Pretty well made - tapered roller ( 32009 Nachi) at the spindle top, thrust bearing at the spindle tail, spindle all ground and nicely finished. Overall fit and finish was good. Hey, this should be a breeze.



    Yep.. it was full of grit inside (teaspoon or more non-magnetic sand), but none of it looked like it came though the roller bearing (from grinding wheels etc). The internal casting was sealed with paint where they could get to it easily with a brush. I suspect the grit came from the 10% they didn't paint. Strike 1. The original B&S design was basically good. No idea if it's an original flaw, but the top roller has an open gap (about a 1/16th) at the top and bad crap can get in where it can damage the roller bearing, Rollers have no ability to easily move junk out of the way. But in this case, after washing out, the roller and cup were like new. Later I'll put a 75mm (id) oil seal around the spindle flange to seal it.

    The spindle bearing cup and holder:

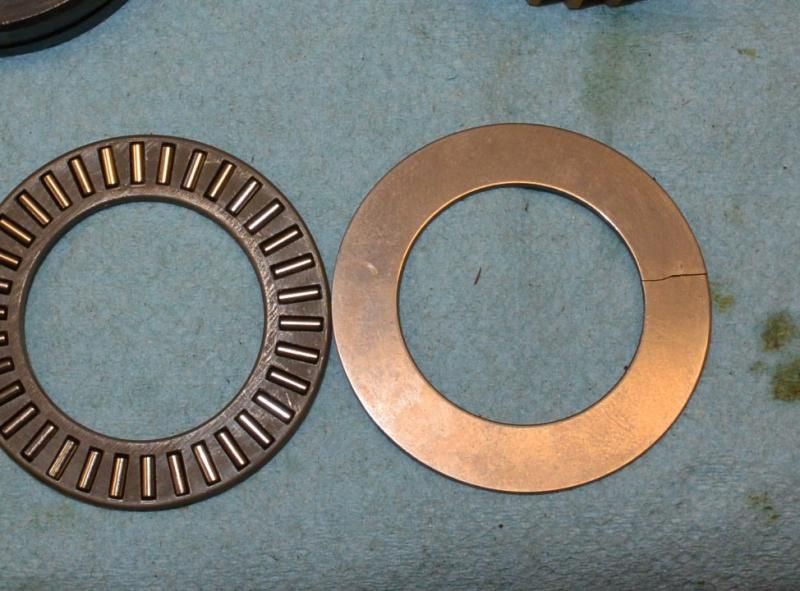

    The ratchet feeling wasn't the grit or hard grease (awful grease had dried rock hard); it was a cracked bearing disc on the rear thrust bearing. Every time the roller dropped into the crack it felt "odd".

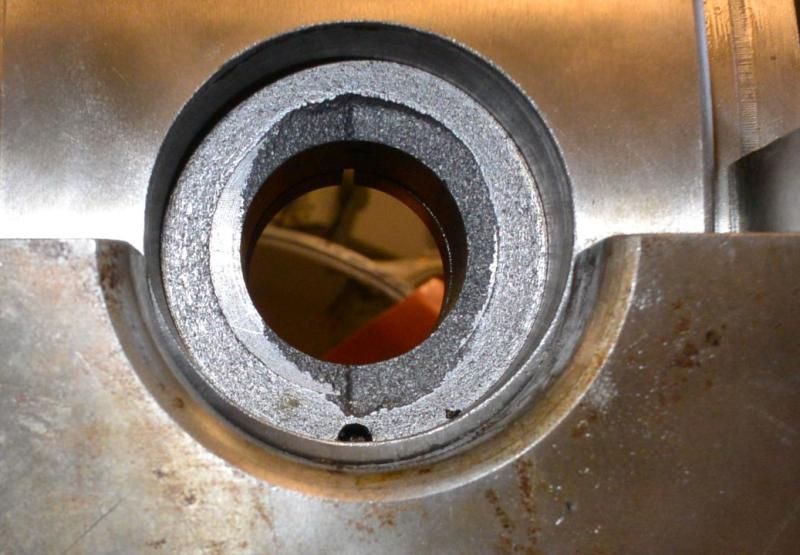

    But wait.. How can the roller drop into crack if the plate is pressing on a solid machine surface...? uh oh.... it's not solid. Frigg... the casting was machined to the correct depth, but an occlusion still existed: (47mm plate, 51mm diameter hole):



    But... the occlusion still doesn't fully explain why the plate cracked.
    Last edited by lakeside53; 03-05-2015, 01:52 AM.

  • #2
    The thrust bearing and tapered bearing are pulled together (preloaded) by a threaded collar on the rear of the spindle.. To lock the preload, the collar is split on one side and a screw compresses the thread.



    Ha... the damn screw is too long. and when tightened even carefully puts a high point load directly on the bearing. This load was at 6 o'clock in the casting picture above - worst possible place. You can see the shiny spot on the screw end. It protruded about 50 thou... and I could see the contact point right on the bearing plate crack. Basically it was "locking" by driving a screw into the top bearing plate, not by compressing the threads.



    Ok, mystery solved. I might have got away just shortening the screw and leaving the casting alone, but I wouldn't be able to sleep. Mounted the casting in the BP and machined down until the occlusion was gone, about 80 thou... Easier with cnc to just use an end mill, but I could have used a rotary table or boring head.



    Much better :

    Last edited by lakeside53; 03-26-2015, 12:52 AM.

    Comment


    • #3
      Ready for assembly? - fat chance!

      Looking at the spindle threads, I had noticed they looked a bit wide on the top flats but figured they has just relieved them more to stop damage. They measured about at about 1.475 inches, a bit low but "ok". After all... I has a nose protector nut and back plate that screwed on nicely. On a whim I grabbed a 4-jaw check with a 1.5-8 backing plate. Wouldn't screw on at all! Grabbed two more - same deal. WTF? Check again , maybe some wacky metric/whatever thread - nope, 8tpi...

      Decided to get technical. No thread wires so I checked all my #50 drills shanks until I found three that were exactly 0.0700. Probably not perfectly round but good enough for a quick test.

      For a class 2A 1 1/2-8 using 0.0700 wires, I'd expect 1.5184 to 1.5111. My measurement was 1.529. Now it was obvious... it wasn't that the thread tops were cut down - they weren't finished to the correct depth!. Argghh.. worse, they supplied a nut and faceplate that fitted nicely, but not standard. I bet they made a run of beautiful but messed up spindles and decided to "fix" it by supplying two matching parts. lol

      Thread calc I used. You can enter any wire sizes or select the class. http://theoreticalmachinist.com/Thre...dImperial.aspx

      File test shows it's not real hard (probably RC28-32 if 4140ph) so I'm going to try to recut them. I've wrapped the roller bearing with blue masking tape to keep the junk out.

      First, dial in the set-tru for zero run out (I could have used soft jaws also).




      Then a bunch of mucking around getting the existing thread synched to the feed. A few trial passes and I'm ready. Damn, things go by real fast at 80rpm on 8tpi. Sure glad I had my carriage limit switch to cut the spindle and apply the brake. I used a 16ER8UNJ full profile insert. I'll end up with a nice radiused root also. Ok.. adjust depth to skim the old thread.. looking good.. 3 thou more... nice... BANG. Busted off the insert on a hard spot near the shoulder end of thread. Reset the set-tru again, rotate the insert, sync to the old thread, dig out parts of the old insert from the spindle and skim again. Sneak up a few thou at a time and all is well. the ER insert are razor sharp, and really strong in the larger profiles so no issues with shaving even at low sfm.



      Recheck with wires; spot on (my target) - 1.517. Grab my other chucks and they are thread on beautifully. Whew... Oh.. note the bed cloth to catch the thread wires when they try to hide in the swarf tray...


      The endplay adjustment part has a setscrew to lock it. That screw misses the smooth zone and mangles the thread. Need to fix that.



      Done. Yes, didn't have much of a hold on the part!



      Ready for reassembly.
      Last edited by lakeside53; 03-05-2015, 04:10 PM.

      Comment


      • #4
        Main castings back together (easier to hold and work on if the rotating casting is in the cradle). Spindle greased, gear mounted and ready for insertion.



        Rear thrust bearing and locking nut. Because I took about 80 thou out of the casting, I need to build that up again. Turns out the bearing thrust plates are 1mm thick, so the two old plates (including the cracked one!) went into the hole before the new thrust bearing. Perfect!



        Now the worm assembly and endplay/backlash adjuster.



        Inserted. This is a good time to adjust the spindle preload - you can't do it with the worm gear engaged. I have a nice Famco tool to adjust the nut, but you can make something really easy with two bolts and a disc. I've moved the eccentric worm mount to the disengaged position for the next picture to enable spindle preload adjustment. Tighten until you feel the spindle just start to bind, then back off a tiny amount and tighten the lock screw,



        Move the worm eccentric such that the worm fully meshes with the gear then back a tad. Tighten the backlash/endplay while rotating the worm so it all moves freely with minimal backlash. By juggling the worm mesh position and shaft endplay, you can pretty much get rid of all backlash if everything is in good shape. Over do it and you'll end up prematurely wearing the bronze gear

        That's it - all done... I'm happy with the outcome. A zillion things could have gone wrong when I recut the spindle threads, but they didn't. lol.

        Next. CNC Stepper control of the handle so I don't have to mess with counting rotations and remainders, but that will be another thread.
