Atlas 618 treadmill motor conversion

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Atlas 618 treadmill motor conversion

    With some amount of trepidation here's how I added a DC treadmill motor to my Atlas 618 lathe. The treadmill was a kerb find that I dragged back (literally) from around the corner which was then immediately appropriated by the wife. After it nearly spat her off she told me I could have it back and the conversion started.

    Nothing wrong with the 1/4hp (1/3?) reversible motor on there, I just wanted variable speed and a tach. Plus this was a great way to learn how to do it for my drill press where I really need variable speed as it's such a pain to change speed with the low speed pulley.

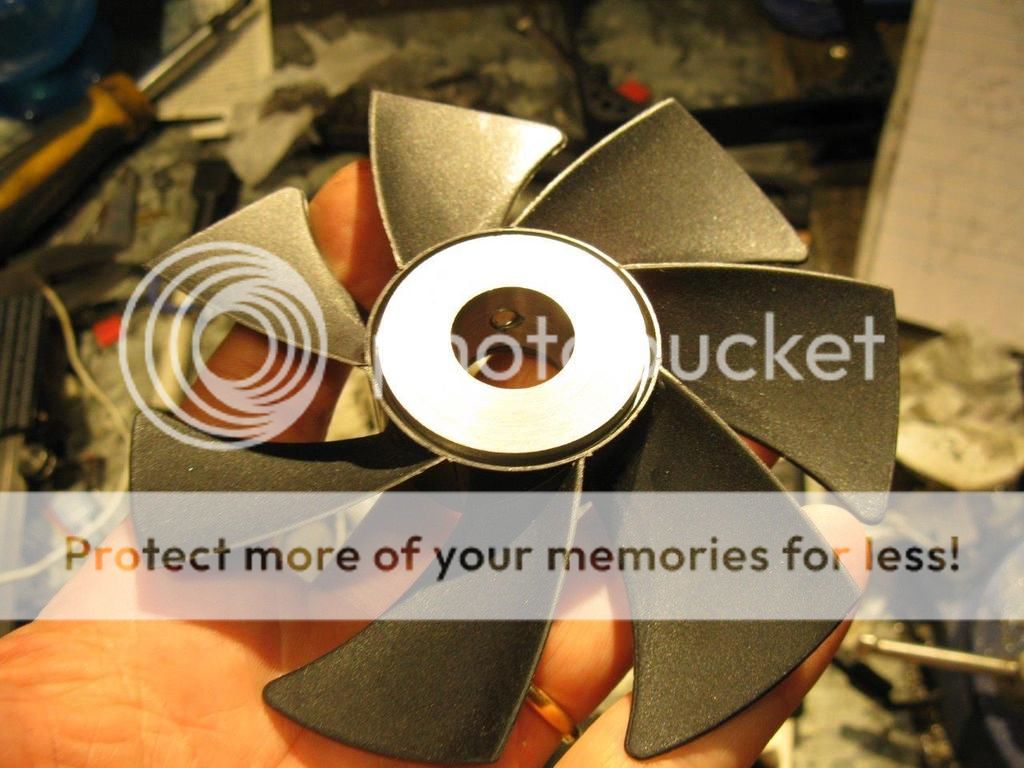

    Anyway, first up was adding a fan to the motor to replace the flywheel


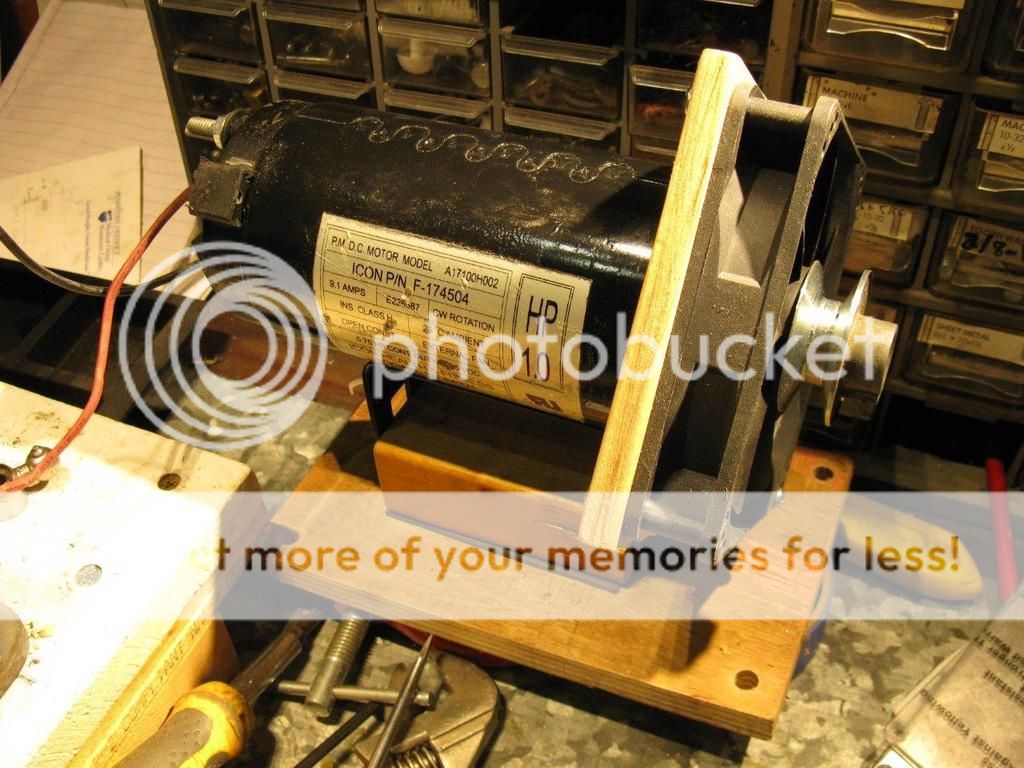

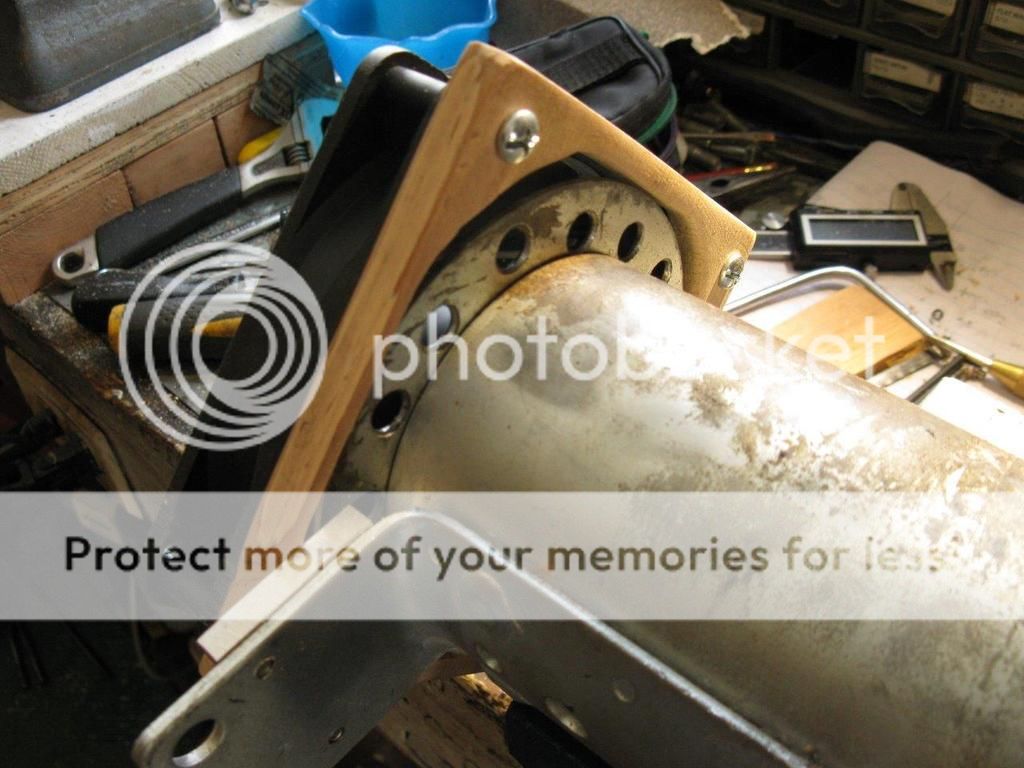

    Added a shroud and drilled the flange around the motor to reduce back pressure


    Lick of paint and a pulley bored to fit the motor spindle


    The driver board, an MC68 which I think is a later variant of the more common MC60 board. Cutting the R19/ RPS3 resistor (connected to the wiper in the speed control rheostat) removes the "turn speed to 0 before starting" feature so the motor restarts at the same speed as when you stopped it
